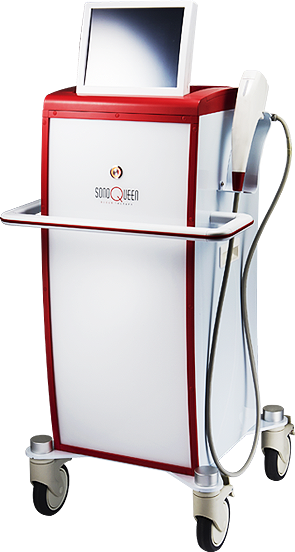

Sonoqueen
SonoQueen is a revolutionary non-invasive device designed to deliver micro-focused ultrasound energy (up to 1.2J) to the dermal and SMAS (superficial muscular aponeurotic system) layers using HIFU (High Intensity Focused Ultrasound) technology. This advanced technology is ideal for face lifting, skin tightening, and wrinkle treatment, providing both immediate and long-lasting results.
Key Features and Benefits:
- Immediate and Long-Lasting Results: Achieve optimal thermal energy and precise focusing for visible improvements.
- Stability and Effectiveness: Special JIG test (Phantom model) ensures stable output and effective thermal energy delivery.
- Cost-Effective Consumables: Designed for the earliest ROI, making it a cost-efficient choice for clinics.
- Expandability: Easy to expand for other applications.
- Durable and Safe: Non-toxic contact film (membrane) ensures safety and durability during treatments.
Lifting Principle:
The lifting and tightening effects are achieved through thermal coagulation generated by 60-70°C heat at the focal point. This heat induces coagulation without affecting the layers from the epidermis to the coagulation point, ensuring no tissue injury around the irradiation area. The precise energy delivery results in effective lifting and tightening of the skin.
Specifications:
- Energy Source: HIFU (High Intensity Focused Ultrasound)
- Dimensions (Stand): (W) 516mm (D) 610mm (H) 1,140mm | Weight: 33kg
- Dimensions (Portable): (W) 428mm (D) 370mm (H) 370mm | Weight: 6.7kg
- Input Power:* AC 100~240V, 50/60Hz
- Cartridge Options:
- M4 (Multi spot): 4MHz, 4.5mm depth, up to 1.2J
- M7 (Multi spot): 7MHz, 3.0mm depth, up to 1.05J
- S4 (Single spot, optional): 4MHz, 4.5mm depth, up to 1.2J
- S7 (Eye type, optional): 7MHz, 2.0mm depth, up to 1.05J
- Spacing: 1.2 mm
- Length: 25.0 mm
- Temperature (Thermal Effect): 44.0 ~ 71.0℃
Included Components: Main body, Handpiece, Power cord, Transducer M4, Transducer M7, Transducer S4 (optional), Transducer S7 (optional)
Treatment Areas:
- Forehead
- Lateral areas
- Peri orbital regions
- Cheeks
- Peri oral regions
- Double chin
- Neck
Before and After:
With SonoQueen, patients can expect significant improvements in skin laxity, texture, and overall appearance. The precise thermal energy and focused ultrasound technology work together to stimulate collagen production and achieve a youthful, lifted look without invasive surgery.
Conclusion:
SonoQueen stands out as a premier device for non-invasive skin rejuvenation. Its advanced HIFU technology, coupled with precise energy delivery and versatile treatment options, makes it an invaluable tool for any clinic seeking to provide top-tier skin lifting and tightening solutions.
